The failure recovery subsystem of Narayana requires that the stand-alone Recovery Manager process be running for each ObjectStore (typically one for each node on the network that is running Narayana applications). The RecoveryManager file is located in the Narayana JAR file within the package com.arjuna.ats.arjuna.recovery.RecoveryManager. To start the Recovery Manager issue the following command:

The RecoveryManager reads the properties defined in the jbossts-properties.xml file.

A default version of jbossts-properties.xml is supplied with the distribution. This can be used without modification, except possibly the debug tracing fields, as shown in Output.

It is likely that installations will want to have some form of output from the RecoveryManager, to provide a record of what recovery activity has taken place. RecoveryManager uses the logging mechanism provided by jboss logging, which provides a high level interface that hides differences that exist between existing logging APIs such Jakarta log4j or JDK logging API.

The configuration of jboss logging depends on the underlying logging framework that is used, which is determined by the availability and ordering of alternatives on the classpath. Please, consult the jboss logging documentation for details. Each log message has an associated log Level, that gives the importance and urgency of a log message. The set of possible Log Levels, in order of least severity, and highest verbosity, is:

Messages describing the start and the periodical behavior made by the RecoveryManager are output using the INFO level. If other debug tracing is wanted, the finer debug or trace levels should be set appropriately.

Setting the normal recovery messages to the INFO level allows the RecoveryManager to produce a moderate level of reporting. If nothing is going on, it just reports the entry into each module for each periodic pass. To disable INFO messages produced by the Recovery Manager, the logging level could be set to the higher level of ERROR, which means that the RecoveryManager will only produce ERROR, WARNING, or FATAL messages.

The RecoveryManager scans the ObjectStore and other locations of information, looking for transactions and resources that require, or may require recovery. The scans and recovery processing are performed by recovery modules. These recovery modules are instances of classes that implement the com.arjuna.ats.arjuna.recovery.RecoveryModule interface. Each module has responsibility for a particular category of transaction or resource. The set of recovery modules used is dynamically loaded, using properties found in the RecoveryManager property file.

The interface has two methods: periodicWorkFirstPass and periodicWorkSecondPass. At an interval defined by property com.arjuna.ats.arjuna.recovery.periodicRecoveryPeriod, the RecoveryManager calls the first pass method on each property, then waits for a brief period, defined by property com.arjuna.ats.arjuna.recovery.recoveryBackoffPeriod. Next, it calls the second pass of each module. Typically, in the first pass, the module scans the relevant part of the ObjectStore to find transactions or resources that are in-doubt. An in-doubt transaction may be part of the way through the commitment process, for instance. On the second pass, if any of the same items are still in-doubt, the original application process may have crashed, and the item is a candidate for recovery.

An attempt by the RecoveryManager to recover a transaction that is still progressing in the original process is likely to break the consistency. Accordingly, the recovery modules use a mechanism, implemented in the com.arjuna.ats.arjuna.recovery.TransactionStatusManager package, to check to see if the original process is still alive, and if the transaction is still in progress. The RecoveryManager only proceeds with recovery if the original process has gone, or, if still alive, the transaction is completed. If a server process or machine crashes, but the transaction-initiating process survives, the transaction completes, usually generating a warning. Recovery of such a transaction is the responsibility of the RecoveryManager.

It is clearly important to set the interval periods appropriately. The total iteration time will be the sum of the periodicRecoveryPeriod and recoveryBackoffPeriod properties, and the length of time it takes to scan the stores and to attempt recovery of any in-doubt transactions found, for all the recovery modules. The recovery attempt time may include connection timeouts while trying to communicate with processes or machines that have crashed or are inaccessible. There are mechanisms in the recovery system to avoid trying to recover the same transaction indefinitely. The total iteration time affects how long a resource will remain inaccessible after a failure. – periodicRecoveryPeriod should be set accordingly. Its default is 120 seconds. The recoveryBackoffPeriod can be comparatively short, and defaults to 10 seconds. Its purpose is mainly to reduce the number of transactions that are candidates for recovery and which thus require a call to the original process to see if they are still in progress.

Two recovery modules, implementations of the com.arjuna.ats.arjuna.recovery.RecoveryModule interface, are supplied with Narayana. These modules support various aspects of transaction recovery, including JDBC recovery. It is possible for advanced users to create their own recovery modules and register them with the Recovery Manager. The recovery modules are registered with the RecoveryManager using RecoveryEnvironmentBean.recoveryModuleClassNames. These will be invoked on each pass of the periodic recovery in the sort-order of the property names – it is thus possible to predict the ordering, but a failure in an application process might occur while a periodic recovery pass is in progress. The default Recovery Extension settings are:

The operation of the recovery subsystem cause some entries to be made in the ObjectStore that are not removed in normal progress. The RecoveryManager has a facility for scanning for these and removing items that are very old. Scans and removals are performed by implementations of the com.arjuna.ats.arjuna.recovery.ExpiryScanner interface. These implementations are loaded by giving the class names as the value of a property RecoveryEnvironmentBean.expiryScannerClassNames. The RecoveryManager calls the scan() method on each loaded Expiry Scanner implementation at an interval determined by the property RecoveryEnvironmentBean.expiryScanInterval. This value is given in hours, and defaults to 12hours. An expiryScanInterval value of zero suppresses any expiry scanning. If the value supplied is positive, the first scan is performed when RecoveryManager starts. If the value is negative, the first scan is delayed until after the first interval, using the absolute value.

The kinds of item that are scanned for expiry are:

The Expiry Scanner properties for these are:

Before installing the Narayana software, we recommend the following administrative steps be taken, assuming a default configuration for Narayana.

Four scripts, located in the Services\bin\windows folder, install and uninstall the recovery manager and transaction server services.

After running any of the scripts, a status message indicates success or failure.

The operation setlock, provided by the LockManager class, performs the following functions:

Now suppose that action Trans is aborted sometime after the lock has been acquired. Then the rollback operation of AtomicAction will process the RecordList instance associated with Trans by invoking an appropriate Abort operation on the various records. The implementation of this operation by the LockRecord class will release the WRITE lock while that of RecoveryRecord or PersistenceRecord will restore the prior state of O.

It is important to realize that all of the above work is automatically being performed by ArjunaCore on behalf of the application programmer. The programmer need only start the transaction and set an appropriate lock; ArjunaCore and TXOJ take care of participant registration, persistence, concurrency control and recovery.

ArjunaCore needs to be able to remember the state of an object for several purposes, including recovery (the state represents some past state of the object), and for persistence (the state represents the final state of an object at application termination). Since all of these requirements require common functionality they are all implemented using the same mechanism - the classes Input/OutputObjectState and Input/OutputBuffer.

The InputBuffer and OutputBuffer classes maintain an internal array into which instances of the standard Java types can be contiguously packed or unpacked, using the pack or unpack operations. This buffer is automatically resized as required should it have insufficient space. The instances are all stored in the buffer in a standard form called network byte order to make them machine independent.

The InputObjectState and OutputObjectState classes provides all the functionality of InputBuffer and OutputBuffer, through inheritance, and add two additional instance variables that signify the Uid and type of the object for which the InputObjectStat or OutputObjectState instance is a compressed image. These are used when accessing the object store during storage and retrieval of the object state.

The ArjunaCore class StateManager manages the state of an object and provides all of the basic support mechanisms required by an object for state management purposes. StateManager is responsible for creating and registering appropriate resources concerned with the persistence and recovery of the transactional object. If a transaction is nested, then StateManager will also propagate these resources between child transactions and their parents at commit time.

Objects are assumed to be of three possible flavors.

This object property is selected at object construction time and cannot be changed thereafter. Thus, an object cannot gain (or lose) recovery capabilities at some arbitrary point during its lifetime.

If an object is recoverable or persistent, StateManager will invoke the operations save_state (while performing deactivation), restore_state (while performing activation), and type at various points during the execution of the application. These operations must be implemented by the programmer since StateManager does not have access to a runtime description of the layout of an arbitrary Java object in memory and thus cannot implement a default policy for converting the in memory version of the object to its passive form. However, the capabilities provided by InputObjectState and OutputObjectState make the writing of these routines fairly simple. For example, the save_state implementation for a class Example that had member variables called A, B, and C could simply be the example implementation of StateManager.

In order to support crash recovery for persistent objects, all save_state and restore_state methods of user objects must call super.save_state and super.restore_state.

The get_uid operation of StateManager provides read-only access to an object’s internal system name for whatever purpose the programmer requires, such as registration of the name in a name server. The value of the internal system name can only be set when an object is initially constructed, either by the provision of an explicit parameter or by generating a new identifier when the object is created.

The destroy method can be used to remove the object’s state from the object store. This is an atomic operation, and therefore will only remove the state if the top-level transaction within which it is invoked eventually commits. The programmer must obtain exclusive access to the object prior to invoking this operation.

Since object recovery and persistence essentially have complimentary requirements (the only difference being where state information is stored and for what purpose), StateManager effectively combines the management of these two properties into a single mechanism. It uses instances of the classes InputObjectState and OutputObjectState both for recovery and persistence purposes. An additional argument passed to the save_state and restore_state operations allows the programmer to determine the purpose for which any given invocation is being made. This allows different information to be saved for recovery and persistence purposes.

ArjunaCore supports two models for objects, which affect how an objects state and concurrency control are implemented.

In summary, the ArjunaCore class StateManager manages the state of an object and provides all of the basic support mechanisms required by an object for state management purposes. Some operations must be defined by the class developer. These operations are: save_state, restore_state, and type.

Consider the following basic Array class derived from the StateManager class. In this example, to illustrate saving and restoring of an object’s state, the highestIndex variable is used to keep track of the highest element of the array that has a non-zero value.

ArjunaCore comes with support for several different object store implementations. If the object model being used is SINGLE, then no lock store is required for maintaining locks, since the information about the object is not exported from it. However, if the MULTIPLE model is used, then different run-time environments (processes, Java virtual machines) may need to share concurrency control information. The implementation type of the lock store to use can be specified for all objects within a given execution environment using the TxojEnvironmentBean.lockStoreType property variable. Currently, this can have one of the following values:

If neither of these approaches is taken, then the default location will be at the same level as the etc directory of the installation.

The concurrency controller is implemented by the class LockManager, which provides sensible default behavior, while allowing the programmer to override it if deemed necessary by the particular semantics of the class being programmed. The primary programmer interface to the concurrency controller is via the setlock operation. By default, the ArjunaCore runtime system enforces strict two-phase locking following a multiple reader, single writer policy on a per-object basis. Lock acquisition is under programmer control, since just as StateManager cannot determine if an operation modifies an object, LockManager cannot determine if an operation requires a read or write lock. Lock release, however, is normally under control of the system and requires no further intervention by the programmer. This ensures that the two-phase property can be correctly maintained.

The LockManager class is primarily responsible for managing requests to set a lock on an object or to release a lock as appropriate. However, since it is derived from StateManager, it can also control when some of the inherited facilities are invoked. For example, if a request to set a write lock is granted, then LockManager invokes modified directly assuming that the setting of a write lock implies that the invoking operation must be about to modify the object. This may in turn cause recovery information to be saved if the object is recoverable. In a similar fashion, successful lock acquisition causes activate to be invoked.

Therefore, LockManager is directly responsible for activating and deactivating persistent objects, as well as registering Resources for managing concurrency control. By driving the StateManager class, it is also responsible for registering Resources for persistent or recoverable state manipulation and object recovery. The application programmer simply sets appropriate locks, starts and ends transactions, and extends the save_state and restore_state methods of StateManager.

The setlock operation must be parametrized with the type of lock required (READ or WRITE), and the number of retries to acquire the lock before giving up. If a lock conflict occurs, one of the following scenarios will take place:

The concurrency control mechanism is integrated into the atomic action mechanism, thus ensuring that as locks are granted on an object appropriate information is registered with the currently running atomic action to ensure that the locks are released at the correct time. This frees the programmer from the burden of explicitly freeing any acquired locks if they were acquired within atomic actions. However, if locks are acquired on an object outside of the scope of an atomic action, it is the programmer’s responsibility to release the locks when required, using the corresponding releaselock operation.

Unlike many other systems, locks in ArjunaCore are not special system types. Instead they are simply instances of other ArjunaCore objects (the class Lock which is also derived from StateManager so that locks may be made persistent if required and can also be named in a simple fashion). Furthermore, LockManager deliberately has no knowledge of the semantics of the actual policy by which lock requests are granted. Such information is maintained by the actual Lock class instances which provide operations (the conflictsWith operation) by which LockManager can determine if two locks conflict or not. This separation is important in that it allows the programmer to derive new lock types from the basic Lock class and by providing appropriate definitions of the conflict operations enhanced levels of concurrency may be possible.

The Lock class provides a modifiesObject operation which LockManager uses to determine if granting this locking request requires a call on modified. This operation is provided so that locking modes other than simple read and write can be supported. The supplied Lock class supports the traditional multiple reader/single writer policy.

Recall that ArjunaCore objects can be recoverable, recoverable and persistent, or neither. Additionally, each object possesses a unique internal name. These attributes can only be set when that object is constructed. Thus LockManager provides two protected constructors for use by derived classes, each of which fulfills a distinct purpose.

The finalizer of a programmer-defined class must invoke the inherited operation terminate to inform the state management mechanism that the object is about to be destroyed. Otherwise, unpredictable results may occur.

If you want to be informed when a transaction is rolled back or forced into a rollback-only mode by the reaper, you can create a class that inherits from class com.arjuna.ats.arjuna.coordinator.listener.ReaperMonitor and overrides the rolledBack and markedRollbackOnly methods. When registered with the reaper via the TransactionReaper.addListener method, the reaper will invoke one of these methods depending upon how it tries to terminate the transaction.

Examples throughout this manual use transactions in the implementation of constructors for new persistent objects. This is deliberate because it guarantees correct propagation of the state of the object to the object store. The state of a modified persistent object is only written to the object store when the top-level transaction commits. Thus, if the constructor transaction is top-level and it commits, the newly-created object is written to the store and becomes available immediately. If, however, the constructor transaction commits but is nested because another transaction that was started prior to object creation is running, the state is written only if all of the parent transactions commit.

On the other hand, if the constructor does not use transactions, inconsistencies in the system can arise. For example, if no transaction is active when the object is created, its state is not saved to the store until the next time the object is modified under the control of some transaction.

ArjunaCore may invoke the user-defined save_state operation of an object at any time during the lifetime of an object, including during the execution of the body of the object’s constructor. This is particularly a possibility if it uses atomic actions. It is important, therefore, that all of the variables saved by save_state are correctly initialized. Exercise caution when writing the save_state and restore_state operations, to ensure that no transactions are started, either explicitly in the operation, or implicitly through use of some other operation. The reason for this restriction is that ArjunaCore may invoke restore_state as part of its commit processing. This would result in the attempt to execute an atomic transaction during the commit or abort phase of another transaction. This might violate the atomicity properties of the transaction being committed or aborted, and is thus discouraged. In order to support crash recovery for persistent objects, all save_state and restore_state methods of user objects must call super.save_state and super.restore_state.

The examples throughout this manual derive user classes from LockManager. These are two important reasons for this.

However, if you only require access to ArjunaCore’s persistence and recovery mechanisms, direct derivation of a user class from StateManager is possible.

Classes derived directly from StateManager must make use of its state management mechanisms explicitly. These interactions are normally undertaken by LockManager. From a programmer’s point of view this amounts to making appropriate use of the operations activate, deactivate, and modified, since StateManager 's constructors are effectively identical to those of LockManager.

If the operations of the queue class are to be coded as atomic actions, then the enqueue operation might have the structure given below. The dequeue operation is similarly structured, but is not implemented here.

Narayana provides a set of recovery modules that are responsible to manage recovery according to the nature of the participant and its position in a transactional tree. The provided classes over and above the ones covered elsewhere (that all implements the RecoveryModule interface) are:

The failure recovery subsystem of Narayana requires that the stand-alone Recovery Manager process be running for each ObjectStore (typically one for each node on the network that is running Narayana applications). The RecoveryManager file is located in the package com.arjuna.ats.arjuna.recovery.RecoveryManager. To start the Recovery Manager issue the following command:

The RecoveryManager reads the properties defined in the arjuna.properties file and then also reads the property file RecoveryManager.properties, from the same directory as it found the arjuna properties file. An entry for a property in the RecoveryManager properties file will override an entry for the same property in the main TransactionService properties file. Most of the entries are specific to the Recovery Manager.

A default version of RecoveryManager.properties is supplied with the distribution – this can be used without modification, except possibly the debug tracing fields (see below, Output). The rest of this section discusses the issues relevant in setting the properties to other values (in the order of their appearance in the default version of the file).

The RecoveryManager scans the ObjectStore and other locations of information, looking for transactions and resources that require, or may require recovery. The scans and recovery processing are performed by recovery modules, (instances of classes that implement the com.arjuna.ats.arjuna.recovery.RecoveryModule interface), each with responsibility for a particular category of transaction or resource. The set of recovery modules used are dynamically loaded, using properties found in the RecoveryManager property file.

The interface has two methods: periodicWorkFirstPass and periodicWorkSecondPass. At an interval (defined by property com.arjuna.ats.arjuna.recovery.periodicRecoveryPeriod), the RecoveryManager will call the first pass method on each property, then wait for a brief period (defined by property com.arjuna.ats.arjuna.recovery.recoveryBackoffPeriod), then call the second pass of each module. Typically, in the first pass, the module scans (e.g. the relevant part of the ObjectStore) to find transactions or resources that are in-doubt (i.e. are part way through the commitment process). On the second pass, if any of the same items are still in-doubt, it is possible the original application process has crashed and the item is a candidate for recovery.

An attempt, by the RecoveryManager, to recover a transaction that is still progressing in the original process(es) is likely to break the consistency. Accordingly, the recovery modules use a mechanism (implemented in the com.arjuna.ats.arjuna.recovery.TransactionStatusManager package) to check to see if the original process is still alive, and if the transaction is still in progress. The RecoveryManager only proceeds with recovery if the original process has gone, or, if still alive, the transaction is completed. (If a server process or machine crashes, but the transaction-initiating process survives, the transaction will complete, usually generating a warning. Recovery of such a transaction is the RecoveryManager’s responsibility).

It is clearly important to set the interval periods appropriately. The total iteration time will be the sum of the periodicRecoveryPeriod, recoveryBackoffPeriod and the length of time it takes to scan the stores and to attempt recovery of any in-doubt transactions found, for all the recovery modules. The recovery attempt time may include connection timeouts while trying to communicate with processes or machines that have crashed or are inaccessible (which is why there are mechanisms in the recovery system to avoid trying to recover the same transaction forever). The total iteration time will affect how long a resource will remain inaccessible after a failure – periodicRecoveryPeriod should be set accordingly (default is 120 seconds). The recoveryBackoffPeriod can be comparatively short (default is 10 seconds) – its purpose is mainly to reduce the number of transactions that are candidates for recovery and which thus require a “call to the original process to see if they are still in progress

Two recovery modules (implementations of the com.arjuna.ats.arjuna.recovery.RecoveryModule interface) are supplied with Narayana, supporting various aspects of transaction recovery including JDBC recovery. It is possible for advanced users to create their own recovery modules and register them with the Recovery Manager. The recovery modules are registered with the RecoveryManager using RecoveryEnvironmentBean.recoveryExtensions. These will be invoked on each pass of the periodic recovery in the sort-order of the property names – it is thus possible to predict the ordering (but note that a failure in an application process might occur while a periodic recovery pass is in progress). The default Recovery Extension settings are:

The operation of the recovery subsystem will cause some entries to be made in the ObjectStore that will not be removed in normal progress. The RecoveryManager has a facility for scanning for these and removing items that are very old. Scans and removals are performed by implementations of the com.arjuna.ats.arjuna.recovery.ExpiryScanner interface. Implementations of this interface are loaded by giving the class names as the value of a property RecoveryEnvironmentBean.expiryScanners. The RecoveryManager calls the scan() method on each loaded Expiry Scanner implementation at an interval determined by the property RecoveryEnvironmentBean.expiryScanInterval”. This value is given in hours – default is 12. An expiryScanInterval value of zero will suppress any expiry scanning. If the value as supplied is positive, the first scan is performed when RecoveryManager starts; if the value is negative, the first scan is delayed until after the first interval (using the absolute value)

The kinds of item that are scanned for expiry are:

The Expiry Scanner properties for these are:

To illustrate the behavior of a recovery module, the following pseudo code describes the basic algorithm used for Atomic Action transactions and Transactional Objects for java.

This basic example does not aim to present a complete process to recover from failure, but mainly to illustrate the way to implement a recovery module.

The application used here consists to create an atomic transaction, to register a participant within the created transaction and finally to terminate it either by commit or abort. A set of arguments are provided:

The code of the main class that control the application is given below

The registered participant has the following behavior:

The main portion of the code illustrating such behavior is described hereafter.

The role of the Recovery Module in such application consists to read the content of the file used to store the status of the participant, to determine that status and print a message indicating if a recovery action is needed or not.

The recovery module should now be deployed in order to be called by the Recovery Manager. To do so, we just need to add an entry in the config file for the extension:

Once started, the Recovery Manager will automatically load the listed Recovery modules.

As mentioned, the basic application presented above does not present the complete process to recover from failure, but it was just presented to describe how the build a recovery module. In case of the OTS protocol, let’s consider how a recovery module that manages recovery of OTS resources can be configured.

To manage recovery in case of failure, the OTS specification has defined a recovery protocol. Transaction’s participants in a doubt status could use the RecoveryCoordinator to determine the status of the transaction. According to that transaction status, those participants can take appropriate decision either by roll backing or committing. Asking the RecoveryCoordinator object to determine the status consists of invoke the replay_completion operation on the RecoveryCoordinator.

For each OTS Resource in a doubt status, it is well known which RecoveyCoordinator to invoke to determine the status of the transaction in which the Resource is involved – It’s the RecoveryCoordinator returned during the Resource registration process. Retrieving such RecoveryCoordinator per resource means that it has been stored in addition to other information describing the resource.

A recovery module dedicated to recover OTS Resources could have the following behavior. When requested by the recovery Manager on the first pass it retrieves from the disk the list of resources that are in the doubt status. During the second pass, if the resources that were retrieved in the first pass still remain in the disk then they are considered as candidates for recovery. Therefore, the Recovery Module retrieves for each candidate its associated RecoveryCoordinator and invokes the replay_completion operation that the status of the transaction. According to the returned status, an appropriate action would be taken (for instance, rollback the resource is the status is aborted or inactive).

Narayana supports construction of both local and distributed transactional applications which access databases using the JDBC APIs. JDBC supports two-phase commit of transactions, and is similar to the XA X/Open standard. Narayana provides JDBC support in package com.arjuna.ats.jdbc. A list of the tested drivers is available from the Narayana website.

Only use the transactional JDBC support provided in package com.arjuna.ats.jdbc when you are using Narayana outside of an application server, such as WildFly Application Server, or another container. Otherwise, use the JDBC support provided by your application server or container.

The approach Narayana takes for incorporating JDBC connections within transactions is to provide transactional JDBC drivers as conduits for all interactions. These drivers intercept all invocations and ensure that they are registered with, and driven by, appropriate transactions. The driver com.arjuna.ats.jdbc.TransactionalDriver handles all JDBC drivers, implementing the java.sql.Driver interface. If the database is not transactional, ACID properties cannot be guaranteed.

Because Narayana provides JDBC connectivity via its own JDBC driver, application code can support transactions with relatively small code changes. Typically, the application programmer only needs to start and terminate transactions.

This simplified example assumes that you are using the transactional JDBC driver provided with Narayana. For details about how to configure and use this driver see the previous Chapter.

This class implements the XAResourceRecovery interface for XAResources. The parameter supplied in setParameters can contain arbitrary information necessary to initialize the class once created. In this example, it contains the name of the property file in which the database connection information is specified, as well as the number of connections that this file contains information on. Each item is separated by a semicolon.

This is only a small example of the sorts of things an XAResourceRecovery implementer could do. This implementation uses a property file that is assumed to contain sufficient information to recreate connections used during the normal run of an application so that recovery can be performed on them. Typically, user-names and passwords should never be presented in raw text on a production system.

Some error-handling code is missing from this example, to make it more readable.

When Narayana runs embedded in WildFly Application Server, the transaction subsystem is configured primarily through the jboss-cli configuration tool, which overrides properties read from the default properties file embedded in the .jar file.

See the jboss-cli tool and the WildFly Application Server administration and configuration guide for further information.

To make Narayana logging semantically consistent with WildFly Application Server, the TransactionManagerService modifies the level of some log messages, by overriding the value of the LoggingEnvironmentBean.loggingFactory property in the jbossts-properties.xml file. Therefore, the value of this property has no effect on the logging behavior when running embedded in WildFly Application Server. By forcing use of the log4j_releveler logger, the TransactionManagerService changes the level of all INFO level messages in the transaction code to DEBUG. Therefore, these messages do not appear in log files if the filter level is INFO. All other log messages behave as normal.

The TransactionManager bean provides transaction management services to other components in WildFly Application Server. There are two different version of this bean and they require different configuration. Use jboss-cli to select JTA or JTS mode.

You can coordinate transactions from a coordinator which is not located within the WildFly Application Server, such as when using transactions created by an external OTS server. To ensure the transaction context is propagated via JRMP invocations to the server, the transaction propagation context factory needs to be explicitly set for the JRMP invoker proxy. This is done as follows:

This chapter will briefly cover the key features required to construct a JTA application. It is assumed that the reader is familiar with the concepts of the JTA.

The key Java packages (and corresponding jar files) for writing basic JTA applications are:

All of these packages appear in the lib directory of the Narayana installation, and should be added to the programmer’s CLASSPATH.

In order to fully utilize all of the facilities available within Narayana, it will be necessary to add some additional jar files to your classpath. See bin/setup-env.sh or bin\setup-env.bat for details.

Narayana has also been designed to be configurable at runtime through the use of various property attributes. These attributes can be provided at runtime on command line or specified through a properties file.

The Java Transaction API consists of three elements: a high-level application transaction demarcation interface, a high-level transaction manager interface intended for application server, and a standard Java mapping of the X/Open XA protocol intended for transactional resource manager. All of the JTA classes and interfaces occur within the jakarta.transaction package, and the corresponding Narayana implementations within the com.arjuna.ats.jta package.

In order to ensure interoperability between JTA applications, it is recommended to rely on the JTS/OTS specification to ensure transaction propagation among transaction managers.

In order to select the local JTA implementation it is necessary to perform the following steps:

In order to select the distributed JTA implementation it is necessary to perform the following steps:

Narayana JTS supports the construction of both local and distributed transactional applications which access databases using the JDBC APIs. JDBC supports two-phase commit of transactions, and is similar to the XA X/Open standard. The JDBC support is found in the com.arjuna.ats.jdbc package.

The ArjunaJTS approach to incorporating JDBC connections within transactions is to provide transactional JDBC drivers through which all interactions occur. These drivers intercept all invocations and ensure that they are registered with, and driven by, appropriate transactions. (There is a single type of transactional driver through which any JDBC driver can be driven. This driver is com.arjuna.ats.jdbc.TransactionalDriver, which implements the java.sql.Driver interface.)

Once the connection has been established (for example, using the java.sql.DriverManager.getConnection method), all operations on the connection will be monitored by Narayana. Once created, the driver and any connection can be used in the same way as any other JDBC driver or connection.

Narayana connections can be used within multiple different transactions simultaneously, i.e., different threads, with different notions of the current transaction, may use the same JDBC connection. Narayana does connection pooling for each transaction within the JDBC connection. So, although multiple threads may use the same instance of the JDBC connection, internally this may be using a different connection instance per transaction. With the exception of close, all operations performed on the connection at the application level will only be performed on this transaction-specific connection.

Narayana will automatically register the JDBC driver connection with the transaction via an appropriate resource. When the transaction terminates, this resource will be responsible for either committing or rolling back any changes made to the underlying database via appropriate calls on the JDBC driver.

The following table shows some of the configuration features, with default values shown in italics. For more detailed information, the relevant section numbers are provided. You should look at the various Programmers Guides for more options.

The Narayana run-time support consists of run-time packages and the OTS transaction manager server. By default, Narayana does not use a separate transaction manager server. Instead, transaction managers are co-located with each application process to improve performance and improve application fault-tolerance by reducing application dependency on other services.

When running applications which require a separate transaction manager, set the JTSEnvironmentBean.transactionManager environment variable to value YES. The system locates the transaction manager server in a manner specific to the ORB being used. This method may be any of:

You override the default registration mechanism by using the OrbPortabilityEnvironmentBean.resolveService environment variable, which takes the following values:

Each XA Xid that Narayana creates must have a unique node identifier encoded within it. Narayana only recovers transactions and states that match a specified node identifier. Provide the node identifier with the CoreEnvironmentBean.nodeIdentifier property. This value must be unique across your Narayana instances. If you do not provide a value, Narayana generates one and reports the value via the logging infrastructure.

When running XA recovery, you need to specify which types of Xid Narayana can recover. Use the JTAEnvironmentBean.xaRecoveryNodes property to provide one or more values, in a space-separated list.

Two variants of the JTA implementation are now provided and accessible through the same interface. These are:

Both of these implementations are fully compatible with the transactional JDBC driver provided with Narayana.

For JacORB to function correctly it needs a valid jacorb.properties or .jacorb_properties file in one of the following places, in searched order:

Within the JacORB properties file there are two important properties which must be tailored to suit your application.

These properties specify the minimum and maximum number of request processing threads that JacORB uses in its thread pool. If no threads are available, may block until a thread becomes available. For more information on configuring JacORB, refer to the JacORB documentation.

When running the recovery manager, it should always use the same well-known port for each machine on which it runs. Do not use the OAPort property provided by JacORB unless the recovery manager has its own jacorb.properties file or the property is provided on the command line when starting the recovery manager. If the recovery manager and other components of Narayana share the same jacorb.properties file, use the JTSEnvironmentBean.recoveryManagerPort and JTSEnvironmentBean.recoveryManagerAddress properties.

A transaction is a unit of work that encapsulates multiple database actions such that that either all the encapsulated actions fail or all succeed.

Transactions ensure data integrity when an application interacts with multiple datasources.

This ability to roll back an operation if any part of it fails is what Narayana is all about. This guide assists you in writing transactional applications to protect your data.

"Transactions" in this guide refers to atomic transactions, and embody the "all-or-nothing" concept outlined above. Transactions are used to guarantee the consistency of data in the presence of failures. Transactions fulfill the requirements of ACID: Atomicity, Consistency, Isolation, Durability.

A transaction can be terminated in two ways: committed or aborted (rolled back). When a transaction is committed, all changes made within it are made durable (forced on to stable storage, e.g., disk). When a transaction is aborted, all of the changes are undone. Atomic actions can also be nested; the effects of a nested action are provisional upon the commit/abort of the outermost (top-level) atomic action.

A two-phase commit protocol guarantees that all of the transaction participants either commit or abort any changes made. Two-Phase Commit illustrates the main aspects of the commit protocol.

The action coordinator maintains a transaction context where resources taking part in the action need to be registered. Resources must obey the transaction commit protocol to guarantee ACID properties. Typically, the resource provides specific operations which the action can invoke during the commit/abort protocol. However, some resources may not be able to be transactional in this way. This may happen if you have legacy code which cannot be modified. Transactional proxies allow you to use these anomalous resources within an action.

The proxy is registered with, and manipulated by, the action as though it were a transactional resource, and the proxy performs implementation specific work to make the resource it represents transactional. The proxy must participate within the commit and abort protocols. Because the work of the proxy is performed as part of the action, it is guaranteed to be completed or undone despite failures of the action coordinator or action participants.

Given a system that provides transactions for certain operations, you can combine them to form another operation, which is also required to be a transaction. The resulting transaction’s effects are a combination of the effects of its constituent transactions. This paradigm creates the concept of nested subtransactions, and the resulting combined transaction is called the enclosing transaction. The enclosing transaction is sometimes referred to as the parent of a nested (or child) transaction. It can also be viewed as a hierarchical relationship, with a top-level transaction consisting of several subordinate transactions.

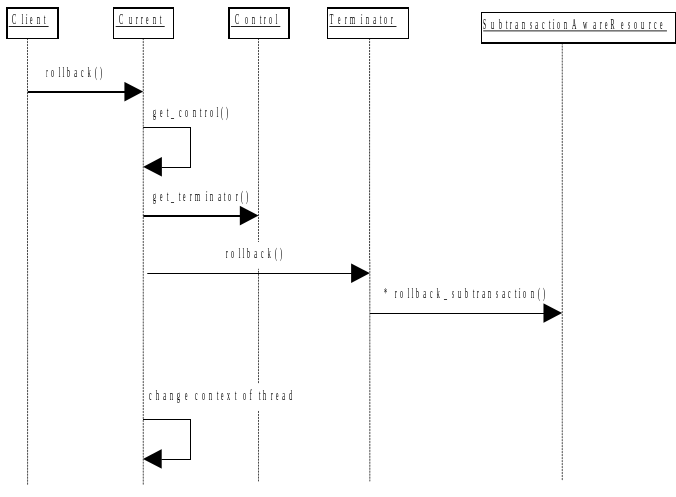

An important difference exists between nested and top-level transactions.

The effect of a nested transaction is provisional upon the commit/roll back of its enclosing transactions. The effects are recovered if the enclosing transaction aborts, even if the nested transaction has committed.

Sub-transactions are a useful mechanism for two reasons:

The CORBA architecture, as defined by the OMG, is a standard which promotes the construction of interoperable applications that are based upon the concepts of distributed objects. The architecture principally contains the following components:

The CORBA architecture allows both implementation and integration of a wide variety of object systems. In particular, applications are independent of the location of an object and the language in which an object is implemented, unless the interface the object explicitly supports reveals such details. As defined in the OMG CORBA Services documentation, object services are defined as a collection of services (interfaces and objects) that support the basic functions for using and implementing objects. These services are necessary to construct distributed application, and are always independent of an application domain. The standards specify several core services including naming, event management, persistence, concurrency control and transactions.

The transaction service provides interfaces that allow multiple distributed objects to cooperate in a transaction, committing or rolling back their changes as a group. However, the OTS does not require all objects to have transactional behavior. An object’s support of transactions can be none at all, for some operations, or fully. Transaction information may be propagated between client and server explicitly, or implicitly. You have fine-grained control over an object’s support of transactions. If your objects supports partial or complete transactional behavior, it needs interfaces derived from interface TransactionalObject.

The Transaction Service specification also distinguishes between recoverable objects and transactional objects. Recoverable objects are those that contain the actual state that may be changed by a transaction and must therefore be informed when the transaction commits or aborts to ensure the consistency of the state changes. This is achieved be registering appropriate objects that support the Resource interface (or the derived SubtransactionAwareResource interface) with the current transaction. Recoverable objects are also by definition transactional objects.

In contrast, a simple transactional object does not necessarily need to be recoverable if its state is actually implemented using other recoverable objects. A simple transactional object does not need to participate the commit protocol used to determine the outcome of the transaction since it maintains no state information of its own.

The OTS is a protocol engine that guarantees obedience to transactional behavior. It does not directly support all of the transaction properties, but relies on some cooperating services:

You are responsible for using the appropriate services to ensure that transactional objects have the necessary ACID properties.

Narayana is based upon the original Arjuna system developed at the University of Newcastle between 1986 and 1995. Arjuna predates the OTS specification and includes many features not found in the OTS. Narayana is a superset of the OTS. Applications written using the standard OTS interfaces are portable across OTS implementations.

You can use Narayana in three different levels, which correspond to the sections in this chapter, and are each explored in their own chapters as well.

Because of differences in ORB implementations, Narayana uses a separate ORB Portability library which acts as an abstraction later. Many of the examples used throughout this manual use this library. Refer to the ORB Portability Manual for more details.

Narayana is fully multi-threaded and supports the OTS notion of allowing multiple threads to be active within a transaction, and for a thread to execute multiple transactions. A thread can only be active within a single transaction at a time, however. By default, if a thread is created within the scope of a transaction, the new thread is not associated with the transaction. If the thread needs to be associated with the transaction, use the resume method of either the AtomicTransaction class or the Current class.

However, if newly created threads need to automatically inherit the transaction context of their parent, then they should extend the OTS_Thread class.

Call the run method of OTS_Thread at the start of the application thread class’s run method. Call terminate before you exit the body of the application thread’s run method.

Although the CORBA specification is a standard, it is written so that an ORB can be implemented in multiple ways. As such, writing portable client and server code can be difficult. Because Narayana has been ported to most of the widely available ORBs, it includes a series of ORB Portability classes and macros. If you write your application using these classes, it should be mostly portable between different ORBs. These classes are described in the separate ORB Portability Manual.

The raw CosTransactions interfaces reside in package org.omg.CosTransactions. The Narayana implementations of these interfaces reside in package com.arjuna.CosTransactions and its sub-packages.

You can override many run-time decisions of Narayana Java properties specified at run-time. The property names are mentioned in the com.arjuna.ats.jts.common.Environment class.

A client application program can manage a transaction using direct or indirect context management.

An object may require transactions to be either explicitly or implicitly propagated to its operations.

A client may use one or both forms of context management, and may communicate with objects that use either method of transaction propagation. This results in four ways in which client applications may communicate with transactional objects:

The main difference between direct and indirect context management is the effect on the invoking thread’s transaction context. Indirect context management causes the thread’s transaction context to be modified automatically by the OTS. For instance, if method begin is called, the thread’s notion of the current transaction is modified to the newly-created transaction. When the transaction is terminated, the transaction previously associated with the thread, if one existed, is restored as the thread’s context. This assumes that subtransactions are supported by the OTS implementation.

If you use direct management, no changes to the thread’s transaction context are made by the OTS, leaving the responsibility to you.

The TransactionFactory interface allows the transaction originator to begin a top-level transaction. sub-transactions must be created using the begin method of Current, or the create_subtransaction method of the parent’s Coordinator). Operations on the factory and Coordinator to create new transactions use direct context management, and therefore do not modify the calling thread’s transaction context.

The create operation creates a new top-level transaction and returns its Control object, which you can use to manage or control participation in the new transaction. Method create takes a parameter that is an application-specific timeout value, in seconds. If the transaction does not complete before this timeout elapses, it is rolled back. If the parameter is 0, no application-specific timeout is established.

The Transaction Service implementation allows the TransactionFactory to be a separate server from the application, shared by transactions clients, and which manages transactions on their behalf. However, the specification also allows the TransactionFactory to be implemented by an object within each transactional client. This is the default implementation used by Narayana, because it removes the need for a separate service to be available in order for transactional applications to execute, and therefore reduces a point of failure.

If your applications require a separate transaction manager, set the OTS_TRANSACTION_MANAGER environment variable to the value YES. The system locates the transaction manager server in a manner specific to the ORB being used. The server can be located in a number of ways.

As of Narayana 4.5, transaction timeouts are unified across all transaction components and are controlled by ArjunaCore. Refer to the ArjunaCore Development Guide for more information.

Transaction contexts are fundamental to the OTS architecture. Each thread is associated with a context in one of three ways.

Contexts may be shared across multiple threads. In the presence of nested transactions, a context remembers the stack of transactions started within the environment, so that the context of the thread can be restored to the state before the nested transaction started, when the nested transaction ends. Threads most commonly use object Current to manipulate transactional information, which is represented by Control objects. Current is the broker between a transaction and Control objects.

Your application can manage transaction contexts either directly or indirectly. In the direct approach, the transaction originator issues a request to a TransactionFactory to begin a new top-level transaction. The factory returns a Control object that enables both a Terminator interface and a Coordinator interface. Terminator ends a transaction. Coordinator associates a thread with a transaction, or begins a nested transaction. You need to pass each interface as an explicit parameter in invocations of operations, because creating a transaction with them does not change a thread’s current context. If you use the factory, and need to set the current context for a thread to the context which its control object returns, use the resume method of interface Current.

When the factory creates a transaction, you can specify a timeout value in seconds. If the transaction times out, it is subject to possible roll-back. Set the timeout to 0 to disable application-specific timeout.

The Current interface handles implicit context management. Implicit context management provides simplified transaction management functionality, and automatically creates nested transactions as required. Transactions created using Current do not alter a thread’s current transaction context.

The Control interface allows a program to explicitly manage or propagate a transaction context. An object supporting the Control interface is associated with one specific transaction. The Control interface supports two operations: get_terminator and get_coordinator. get_terminator returns an instance of the Terminator interface. get_coordinator returns an instance of the Coordinator interface. Both of these methods throw the Unavailable exception if the Control cannot provide the requested object. The OTS implementation can restrict the ability to use the Terminator and Coordinator in other execution environments or threads. At a minimum, the creator must be able to use them.

Obtain the Control object for a transaction when it is created either by using either the TransactionFactory or create_subtransaction methods defined by the Coordinator interface. Obtain a Control for the transaction associated with the current thread using the get_control or suspend methods defined by the Current interface.

The Terminator interface supports commit and rollback operations. Typically, the transaction originator uses these operations. Each object supporting the Terminator interface is associated with a single transaction. Direct context management via the Terminator interface does not change the client thread’s notion of the current transaction.

The commit operation attempts to commit the transaction. To successfully commit, the transaction must not be marked rollback only, and all of its must participants agree to commit. Otherwise, the TRANSACTION_ROLLEDBACK exception is thrown. If the report_heuristics parameter is true, the Transaction Service reports inconsistent results using the HeuristicMixed and HeuristicHazard exceptions.

When a transaction is committed, the coordinator drives any registered Resources using their prepare or commit methods. These Resources are responsible to ensure that any state changes to recoverable objects are made permanent, to guarantee the ACID properties.

When rollback is called, the registered Resources need to guarantee that all changes to recoverable objects made within the scope of the transaction, and its descendants, is undone. All resources locked by the transaction are made available to other transactions, as appropriate to the degree of isolation the resources enforce.

The Coordinator interface is returned by the get_coordinator method of the Control interface. It supports the operations resources need to participate in a transaction. These participants are usually either recoverable objects or agents of recoverable objects, such as subordinate coordinators. Each object supporting the Coordinator interface is associated with a single transaction. Direct context management via the Coordinator interface does not change the client thread’s notion of the current transaction. You can terminate transaction directly, through the Terminator interface. In that case, trying to terminate the transaction a second time using Current causes an exception to be thrown for the second termination attempt.

The operations supported by the Coordinator interface of interest to application programmers are:

The OTS permits individual resources to make heuristic decisions. Heuristic decisions are unilateral decisions made by one or more participants to commit or abort the transaction, without waiting for the consensus decision from the transaction service. Use heuristic decisions with care and only in exceptional circumstances, because they can lead to a loss of integrity in the system. If a participant makes a heuristic decision, an appropriate exception is raised during commit or abort processing.

HeuristicMixed takes priority over HeuristicHazard. Heuristic decisions are only reported back to the originator if the report_heuristics argument is set to true when you invoke the commit operation.

The Current interface defines operations that allow a client to explicitly manage the association between threads and transactions, using indirect context management. It defines operations that simplify the use of the Transaction Service.

The Transaction Service uses a two-phase commit protocol to complete a top-level transaction with each registered resource.

The Resource interface defines the operations invoked by the transaction service. Each Resource object is implicitly associated with a single top-level transaction. Do not register a Resource with the same transaction more than once. When you tell a Resource to prepare, commit, or abort, it must do so on behalf of a specific transaction. However, the Resource methods do not specify the transaction identity. It is implicit, since a Resource can only be registered with a single transaction.

Transactional objects must use the register_resource method to register objects supporting the Resource interface with the current transaction. An object supporting the Coordinator interface is either passed as a parameter in the case of explicit propagation, or retrieved using operations on the Current interface in the case of implicit propagation. If the transaction is nested, the Resource is not informed of the sub-transaction’s completion, and is registered with its parent upon commit.

This example assumes that transactions are only nested two levels deep, for simplicity.

Do not register a given Resource with the same transaction more than once, or it will receive multiple termination calls. When a Resource is directed to prepare, commit, or abort, it needs to link these actions to a specific transaction. Because Resource methods do not specify the transaction identity, but can only be associated with a single transaction, you can infer the identity.

A single Resource or group of Resources guarantees the ACID properties for the recoverable object they represent. A Resource’s work depends on the phase of its transaction.

Recoverable objects that need to participate within a nested transaction may support the SubtransactionAwareResource interface, a specialization of the Resource interface.

A recoverable object is only informed of the completion of a nested transaction if it registers a SubtransactionAwareResource. Register the object with either the register_resource of the Coordinator interface, or the register_subtran_aware method of the Current interface. A recoverable object registers Resources to participate within the completion of top-level transactions, and SubtransactionAwareResources keep track of the completion of subtransactions. The commit_subtransaction method uses a reference to the parent transaction to allow sub-transaction resources to register with these transactions.

SubtransactionAwareResources find out about the completion of a transaction after it terminates. They cannot affect the outcome of the transaction. Different OTS implementations deal with exceptions raised by SubtransactionAwareResources in implementation-specific ways.

Use method register_resource or method register_subtran_aware to register a SubtransactionAwareResource with a transaction using.

In either case, the resource cannot affect the outcome of the transaction completion. It can only act on the transaction’s decision, after the decision is made. However, if the resource cannot respond appropriately, it can raise an exception. Thee OTS handles these exceptions in an implementation-specific way.

If an object needs notification before a transaction commits, it can register an object which is an implements the Synchronization interface, using the register_synchronization operation of the Coordinator interface. Synchronizations flush volatile state data to a recoverable object or database before the transaction commits. You can only associate Synchronizations with top-level transactions. If you try to associate a Synchronization to a nested transaction, an exception is thrown. Each object supporting the Synchronization interface is associated with a single top-level transaction.

The method before_completion is called before the two-phase commit protocol starts, and after_completion is called after the protocol completes. The final status of the transaction is given as a parameter to after_completion. If before_completion raises an exception, the transaction rolls back. Any exceptions thrown by after_completion do not affect the transaction outcome.

The OTS only requires Synchronizations to be invoked if the transaction commits. If it rolls back, registered Synchronizations are not informed.

Given the previous description of Control, Resource, SubtransactionAwareResource, and Synchronization, the following UML relationship diagram can be drawn:

In Sub-transaction commit, a sub-transaction with both Resource and SubtransactionAwareResource objects commits. The SubtransactionAwareResources were registered using register_subtran_aware. The Resources do not know the sub-transaction terminated, but the SubtransactionAwareResources do. Only the Resources are automatically propagated to the parent transaction.

Sub-transaction rollback illustrates the impact of a sub-transaction rolling back. Any registered resources are discarded, and all SubtransactionAwareResources are informed of the transaction outcome.

Top-level commit shows the activity diagram for committing a top-level transaction. sub-transactions within the top-level transaction which have also successfully committed propagate SubtransactionAwareResources to the top-level transaction. These SubtransactionAwareResources then participate within the two-phase commit protocol. Any registered Synchronizations are contacted before prepare is called. Because of indirect context management, when the transaction commits, the transaction service changes the invoking thread’s transaction context.

The TransactionalObject interface indicates to an object that it is transactional. By supporting this interface, an object indicates that it wants to associate the transaction context associated with the client thread with all operations on its interface. The TransactionalObject interface defines no operations.

OTS specifications do not require an OTS to initialize the transaction context of every request handler. It is only a requirement if the interface supported by the target object is derived from TransactionalObject. Otherwise, the initial transaction context of the thread is undefined. A transaction service implementation can raise the TRANSACTION_REQUIRED exception if a TransactionalObject is invoked outside the scope of a transaction.

In a single-address space application, transaction contexts are implicitly shared between clients and objects, regardless of whether or not the objects support the TransactionalObject interface. To preserve distribution transparency, where implicit transaction propagation is supported, you can direct Narayana to always propagate transaction contexts to objects. The default is only to propagate if the object is a TransactionalObject. Set the OTS_ALWAYS_PROPAGATE_CONTEXT property variable to NO to override this behavior.

By default, Narayana does not require objects which support the TransactionalObject interface to invoked within the scope of a transaction. The object determines whether it should be invoked within a transaction. If so, it must throw the TransactionRequired exception. Override this default by setting the OTS_NEED_TRAN_CONTEXT shell environment variable to YES.

OTS objects supporting interfaces such as the Control interface are standard CORBA objects. When an interface is passed as a parameter in an operation call to a remote server, only an object reference is passed. This ensures that any operations that the remote server performs on the interface are correctly performed on the real object. However, this can have substantial penalties for the application, because of the overhead of remote invocation. For example, when the server registers a Resource with the current transaction, the invocation might be remote to the originator of the transaction.

To avoid this overhead, your OTS may support interposition. This permits a server to create a local control object which acts as a local coordinator, and fields registration requests that would normally be passed back to the originator. This coordinator must register itself with the original coordinator, so that it can correctly participate in the commit protocol. Interposed coordinators form a tree structure with their parent coordinators.

To use interposition, ensure that Narayana is correctly initialized before creating objects. Also, the client and server must both use interposition. Your ORB must support filters or interceptors, or the CosTSPortability interface, since interposition requires the use of implicit transaction propagation. To use interposition, set the OTS_CONTEXT_PROP_MODE property variable to INTERPOSITION.

A reference to a RecoveryCoordinator is returned as a result of successfully calling register_resource on the transaction’s Coordinator. Each RecoveryCoordinator is implicitly associated with a single Resource. It can drive the Resource through recovery procedures in the event of a failure which occurs during the transaction.

The OTS supports both checked and unchecked transaction behavior.

Checked transactional behavior is typical transaction behavior, and is widely implemented. Checked behavior requires implicit propagation, because explicit propagation prevents the OTS from tracking which objects are involved in the transaction.

Unchecked behavior allows you to implement relaxed models of atomicity. Any use of explicit propagation implies the possibility of unchecked behavior, since you as the programmer are in control of the behavior. Even if you use implicit propagation, a server may unilaterally abort or commit the transaction using the Current interface, causing unchecked behavior.

Some OTS implementations enforce checked behavior for the transactions they support, to provide an extra level of transaction integrity. The checks ensure that all transactional requests made by the application complete their processing before the transaction is committed. A checked Transaction Service guarantees that commit fails unless all transactional objects involved in the transaction complete the processing of their transactional requests. Rolling back the transaction does not require such as check, since all outstanding transactional activities will eventually roll back if they are not directed to commit.

There are many possible implementations of checking in a Transaction Service. One provides equivalent function to that provided by the request and response inter-process communication models defined by X/Open. The X/Open Transaction Service model of checking widely implemented. It describes the transaction integrity guarantees provided by many existing transaction systems. These transaction systems provide the same level of transaction integrity for object-based applications, by providing a Transaction Service interface that implements the X/Open checks.

In X/Open, completion of the processing of a request means that the object has completed execution of its method and replied to the request. The level of transaction integrity provided by a Transaction Service implementing the X/Open model provides equivalent function to that provided by the XATMI and TxRPC interfaces defined by X/Open for transactional applications. X/Open DTP Transaction Managers are examples of transaction management functions that implement checked transaction behavior.

This implementation of checked behavior depends on implicit transaction propagation. When implicit propagation is used, the objects involved in a transaction at any given time form a tree, called the request tree for the transaction. The beginner of the transaction is the root of the tree. Requests add nodes to the tree, and replies remove the replying node from the tree. Synchronous requests, or the checks described below for deferred synchronous requests, ensure that the tree collapses to a single node before commit is issued.

If a transaction uses explicit propagation, the Transaction Service has no way to know which objects are or will be involved in the transaction. Therefore, the use of explicit propagation is not permitted by a Transaction Service implementation that enforces X/Open-style checked behavior.

Applications that use synchronous requests exhibit checked behavior. If your application uses deferred synchronous requests, all clients and objects need to be under the control of a checking Transaction Service. In that case, the Transaction Service can enforce checked behavior, by applying a reply check and a committed check. The Transaction Service must also apply a resume check, so that the transaction is only resumed by applications in the correct part of the request tree.

The OTS does not provide any Resource implementations. You need to provide these implementations. The interfaces defined within the OTS specification are too low-level for most situations. Narayana is designed to make use of raw Common Object Services (COS) interfaces, but provides a higher-level API for building transactional applications and framework. This API automates much of the work involved with participating in an OTS transaction.

If you use implicit transaction propagation, ensure that appropriate objects support the TransactionalObject interface. Otherwise, you need to pass the transaction contexts as parameters to the relevant operations.

The commit operation of Current or the Terminator interface takes the boolean report_heuristics parameter. If the report_heuristics argument is false, the commit operation can complete as soon as the Coordinator makes the decision to commit or roll back the transaction. The application does not need to wait for the Coordinator to complete the commit protocol by informing all the participants of the outcome of the transaction. This can significantly reduce the elapsed time for the commit operation, especially where participant Resource objects are located on remote network nodes. However, no heuristic conditions can be reported to the application in this case.

Using the report_heuristics option guarantees that the commit operation does not complete until the Coordinator completes the commit protocol with all Resource objects involved in the transaction. This guarantees that the application is informed of any non-atomic outcomes of the transaction, through one of the exceptions HeuristicMixed or HeuristicHazard. However, it increases the application-perceived elapsed time for the commit operation.

A Recoverable Server includes at least one transactional object and one resource object, each of which have distinct responsibilities.

The Transaction Service provides atomic outcomes for transactions in the presence of application, system or communication failures. From the viewpoint of each user object role, two types of failure are relevant:

The transaction originator and transactional server handle these failures in different ways.

When you develop OTS applications which use the raw OTS interfaces, be aware of the following items:

The OTS does not provide any Resource implementations.

The OTS implementation of nested transactions is extremely limited, and can lead to the generation of inconsistent results. One example is a scenario in which a sub-transaction coordinator discovers part of the way through committing that a resources cannot commit. It may not be able to tell the committed resources to abort.

In most transactional systems which support sub-transactions, the sub-transaction commit protocol is the same as a top-level transaction’s. There are two phases, a prepare phase and a commit or abort phase. Using a multi-phase commit protocol avoids the above problem of discovering that one resources cannot commit after others have already been told to commit. The prepare phase generates consensus on the commit outcome, and the commit or abort phase enforces the outcome.

Narayana supports the strict OTS implementation of sub-transactions for those resources derived from CosTransactions::SubtransactionAwareResource. However, if a resource is derived from ArjunaOTS::ArjunaSubtranAwareResource, it is driven by a two-phase commit protocol whenever a nested transaction commits.

During the first phase of the commit protocol the prepare_subtransaction method is called, and the resource behaves as though it were being driven by a top-level transaction, making any state changes provisional upon the second phase of the protocol. Any changes to persistent state must still be provisional upon the second phase of the top-level transaction, as well. Based on the votes of all registered resources, Narayana then calls either commit_subtransaction or rollback_subtransaction.

When resources are registered with a transaction, the transaction maintains them within a list, called the intentions list. At termination time, the transaction uses the intentions list to drive each resource appropriately, to commit or abort. However, you have no control over the order in which resources are called, or whether previously-registered resources should be replaced with newly registered resources. The Narayana interface ArjunaOTS::OTSAbstractRecord gives you this level of control.

When inserting a new record into the transaction’s intentions list, Narayana uses the following algorithm:

OTSAbstractRecord is derived from ArjunaSubtranAwareResource. Therefore, all instances of OTSAbstractRecord inherit the benefits of this interface.

In terms of the OTS, AtomicTransaction is the preferred interface to the OTS protocol engine. It is equivalent to CosTransactions::Current, but with more emphasis on easing application development. For example, if an instance of AtomicTransaction goes out of scope before it terminates, the transaction automatically rolls back. CosTransactions::Current cannot provide this functionality. When building applications using Narayana, use AtomicTransaction for the added benefits it provides. It is located in the com.arjuna.ats.jts.extensions.ArjunaOTS package.

Transaction nesting is determined dynamically. Any transaction started within the scope of another running transaction is nested.

The TopLevelTransaction class, which is derived from AtomicTransaction, allows creation of nested top-level transactions. Such transactions allow non-serializable and potentially non-recoverable side effects to be initiated from within a transaction, so use them with caution. You can create nested top-level transactions with a combination of the CosTransactions::TransactionFactory and the suspend and resume methods of CosTransactions::Current. However, the TopLevelTransaction class provides a more user-friendly interface.

AtomicTransaction and TopLevelTransaction are completely compatible with CosTransactions::Current. You an use the two transaction mechanisms interchangeably within the same application or object.

AtomicTransaction and TopLevelTransaction are similar to CosTransactions::Current. They both simplify the interface between you and the OTS. However, you gain two advantages by using AtomicTransaction or TopLevelTransaction.

When using TXOJ in a distributed manner, Narayana requires you to use interposition between client and object. This requirement also exists if the application is local, but the transaction manager is remote. In the case of implicit context propagation, where the application object is derived from CosTransactions::TransactionalObject, you do not need to do anything further. Narayana automatically provides interposition. However, where implicit propagation is not supported by the ORB, or your application does not use it, you must take additional action to enable interposition.

The class com.arjuna.ats.jts.ExplicitInterposition allows an application to create a local control object which acts as a local coordinator, fielding registration requests that would normally be passed back to the originator. This surrogate registers itself with the original coordinator, so that it can correctly participate in the commit protocol. The application thread context becomes the surrogate transaction hierarchy. Any transaction context currently associated with the thread is lost. The interposition lasts for the lifetime of the explicit interposition object, at which point the application thread is no longer associated with a transaction context. Instead, it is set to null.

interposition is intended only for those situations where the transactional object and the transaction occur within different processes, rather than being co-located. If the transaction is created locally to the client, do not use the explicit interposition class. The transaction is implicitly associated with the transactional object because it resides within the same process.

A transaction context can be propagated between client and server in two ways: either as a reference to the client’s transaction Control, or explicitly sent by the client. Therefore, there are two ways in which the interposed transaction hierarchy can be created and registered. For example, consider the class Example which is derived from LockManager and has a method increment:

if the Control passed to the register operation of ExplicitInterposition is null, no exception is thrown. The system assumes that the client did not send a transaction context to the server. A transaction created within the object will thus be a top-level transaction.

When the application returns, or when it finishes with the interposed hierarchy, the program should call unregisterTransaction to disassociate the thread of control from the hierarchy. This occurs automatically when the ExplicitInterposition object is garbage collected. However, since this may be after the transaction terminates, Narayana assumes the thread is still associated with the transaction and issues a warning about trying to terminate a transaction while threads are still active within it.

This example only includes a single unit of work within the scope of the transaction. Consequently, only a one-phase commit is needed.

The client and server processes are both invoked using the implicit propagation and interposition command-line options.

For the purposes of this worked example, a single method implements the DemoInterface interface. This method is used in the DemoClient program.

These settings are defaults, and you can override them at run-time by using property variables, or in the properties file in the etc/ directory of the installation.

Narayana assures complete, accurate business transactions for any Java based applications, including those written for the Jakarta EE and EJB frameworks.
